We are currently completing the development of a Proof-of-Concept an End-to-End Data Architecture.
This page shows the six Levels in our Oracle Cloud Data-as-a-Service
Apex is underneath, and the Specifications have been determined in discussion with Subject Matter EXperts (SMEs).
Level 1. BMEWS BI / KPI in the Clouds
This shows that KPIs can be set up to send an Alert to the CEO's
Mobile (Cell) phone on the golf course when an emergency requires immediate attention.
|
Level 2. This shows that the Data Warehouse populates the Data Marts
and finally the BI Layer and KPIs (Key Performance Indicators) are produced.
|
Level 3. This shows the Conceptual Data Model for our
Operational Support Services (OSS).
|

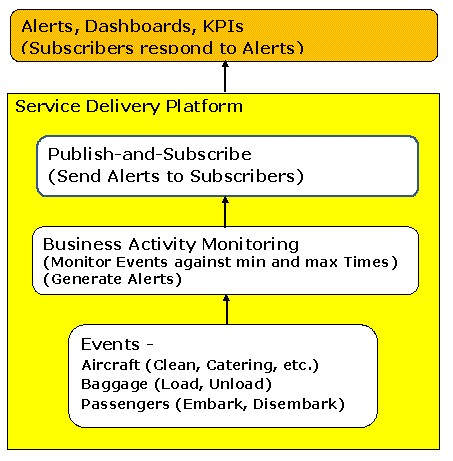

Conceptual Model
This is based on our Service Delivery Platform
|

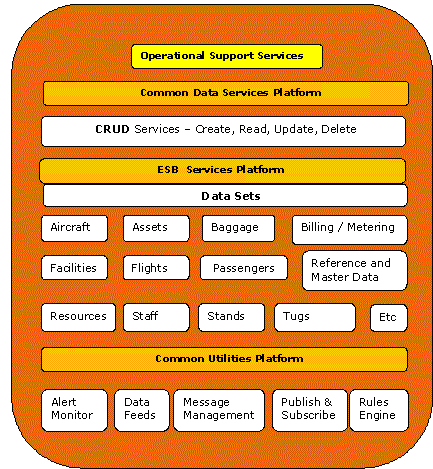

Layer 4. This shows the Components in our OSS Layer
|

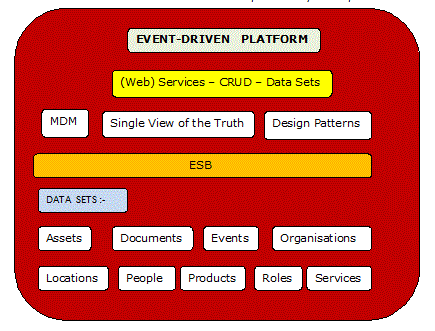

Level 5. This is our Event-Driven Platform
|
Level 6. The Foundation is our Canonical Data Model
|
Max Workspace
Workspace is A13674, user baryw@dba.org, with m123.
Data loaded so far includes :-
Flight Details, including Landing Intervals
Master Data, including Airlines and Airports.
Ref_Airline_Codes
Ref_Airport_Codes
Barry Williams
Principal Consultant
Database Answers Ltd.
London, England
August 28th. 2014
|
